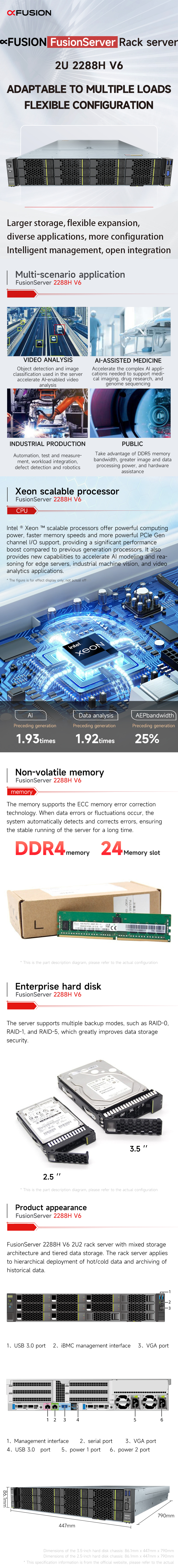

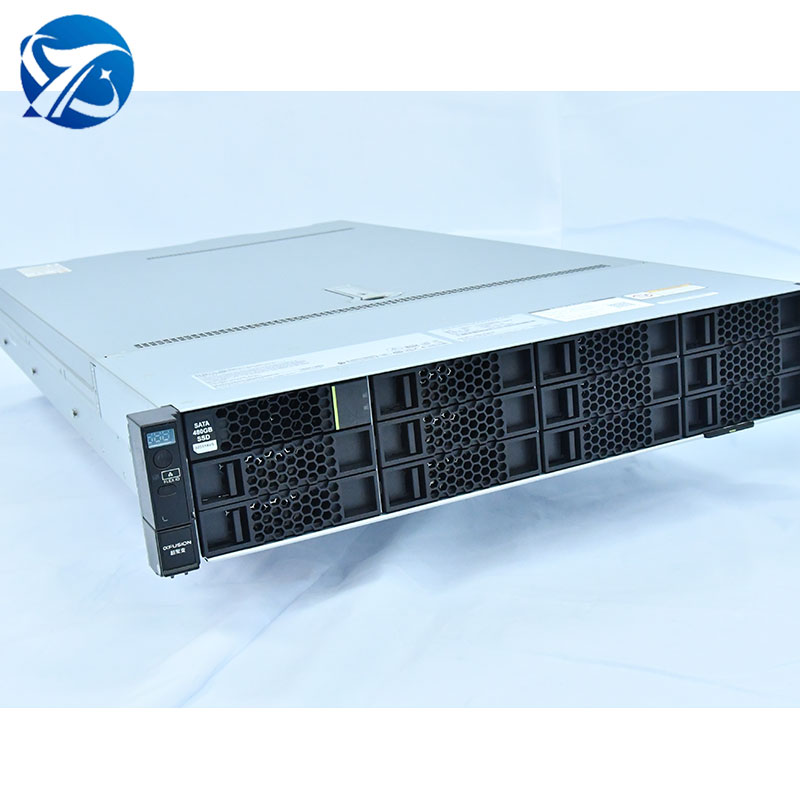

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. It can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |
| RAID support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; Optional supercapacitor for cache data power failure protection |
| Network | OCP 3.0 NICs; FlexIO card slots support two OCP 3.0 network adapters; Hot swappable |
| PCIe Expansion | Max 14 PCIe 4.0 slots (1 dedicated for RAID, 2 for FlexIO/OCP 3.0, 11 for standard cards) |
| Management | iBMC chip; Supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; Optional FusionDirector software |
| Security | Power-on password, administrator password, TPM 2.0, secure boot, cover opening detection |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply | 1+1 redundancy; Options: 900W/1500W/2000W/3000W AC Platinum/Titanium; 1500W HVDC; 1200W DC |
