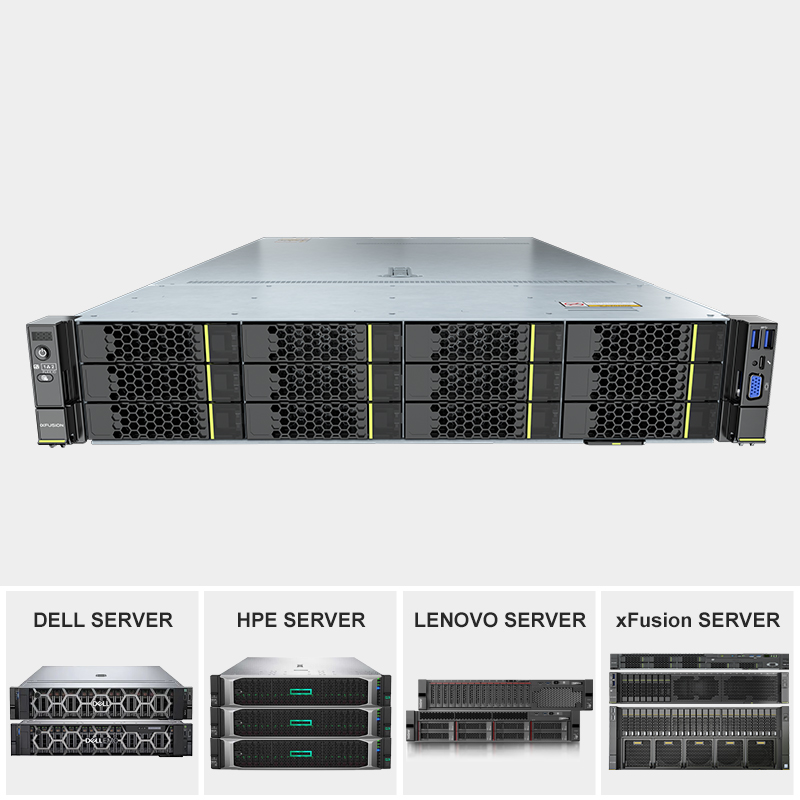

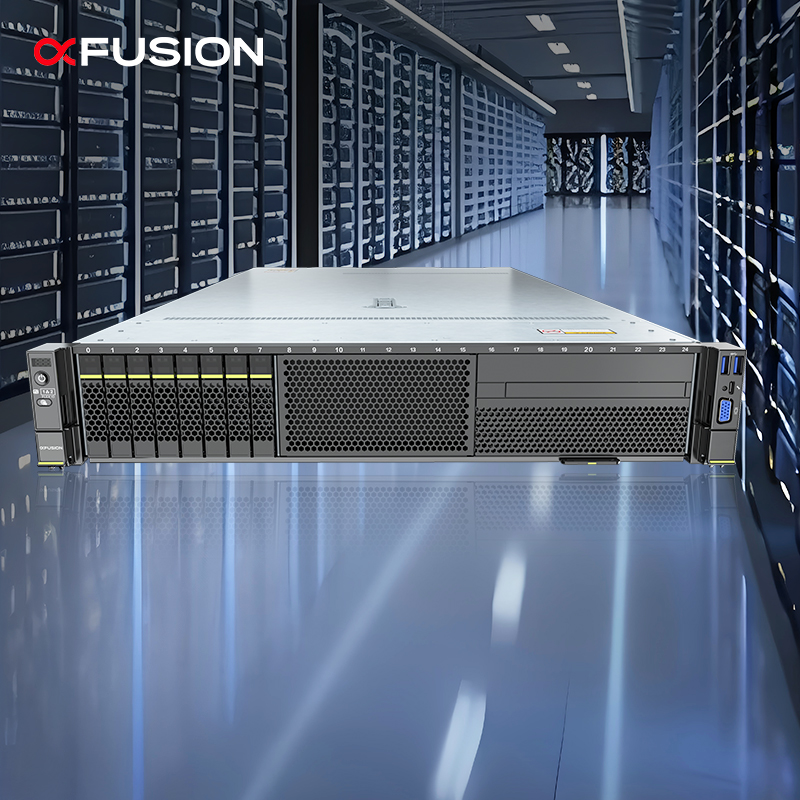

FusionServer 2288H V6 2U rack server: The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

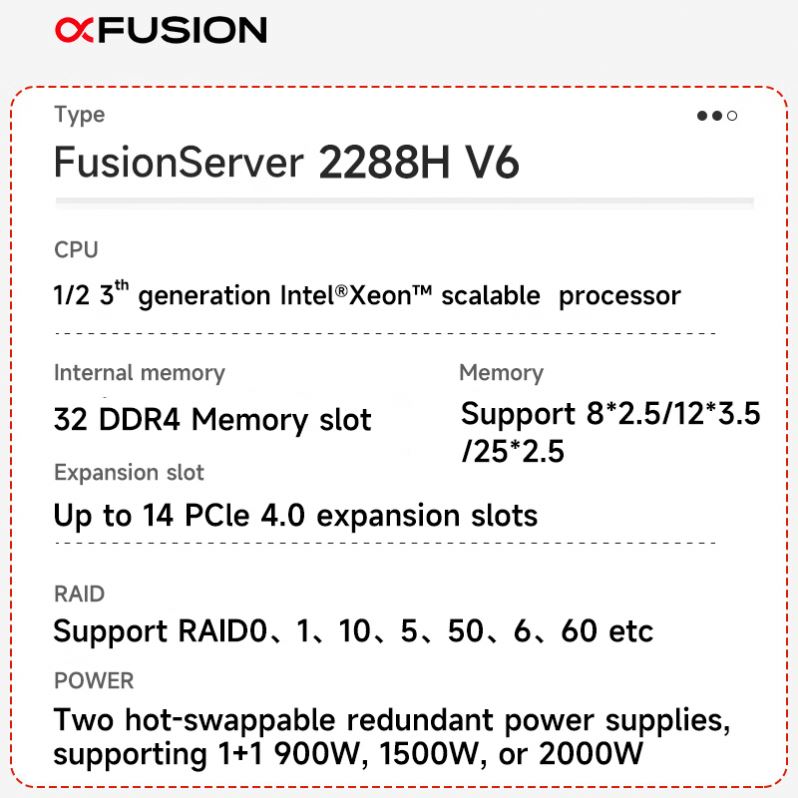

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations: 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |

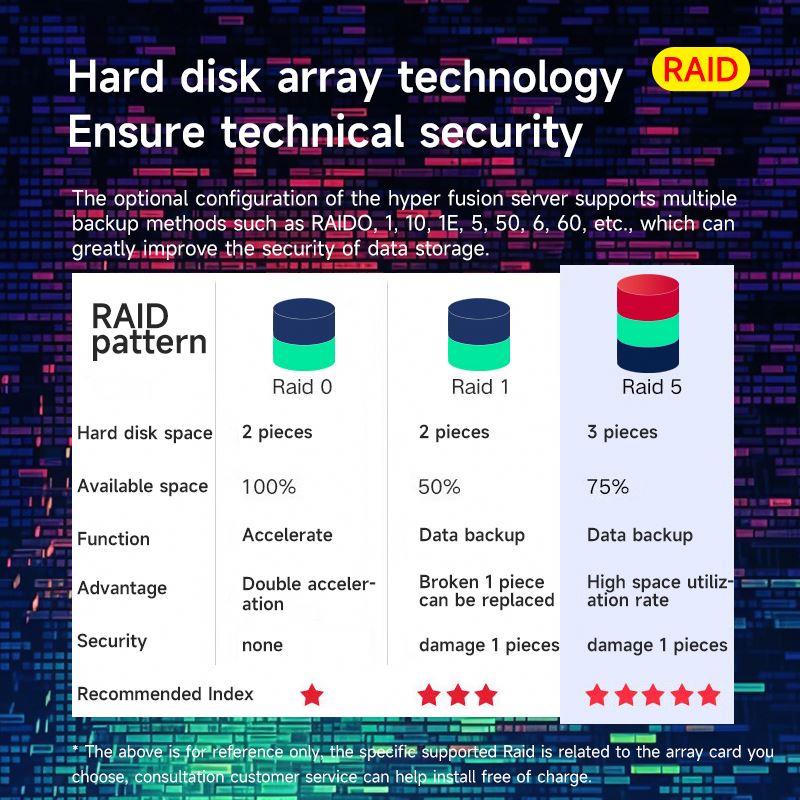

| RAID support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; optional supercapacitor; RAID level migration; self-diagnosis |
| Network | OCP 3.0 NICs; Two FlexIO card slots; Hot swappable support |
| PCIe Expansion | Maximum of 14 PCIe 4.0 slots (dedicated RAID card slot, OCP 3.0 slots, and standard slots) |
| Chip Set | Intel C621A |
| Management | iBMC chip; Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM; Optional FusionDirector software |
| Operating Systems | Windows Server, SUSE Linux, VMware ESXi, Red Hat, CentOS, Oracle, Ubuntu, Debian |
| Security Features | Power-on/Admin password, TPM 2.0, security panel, secure boot, cover opening detection |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy |
| Height X Width X Depth | 86.1 mm x 447 mm x 790 mm |
| Power Supply Units | Two hot-swappable PSUs (1+1 redundancy): 900W/1500W/2000W/3000W Platinum or Titanium options |
